Description

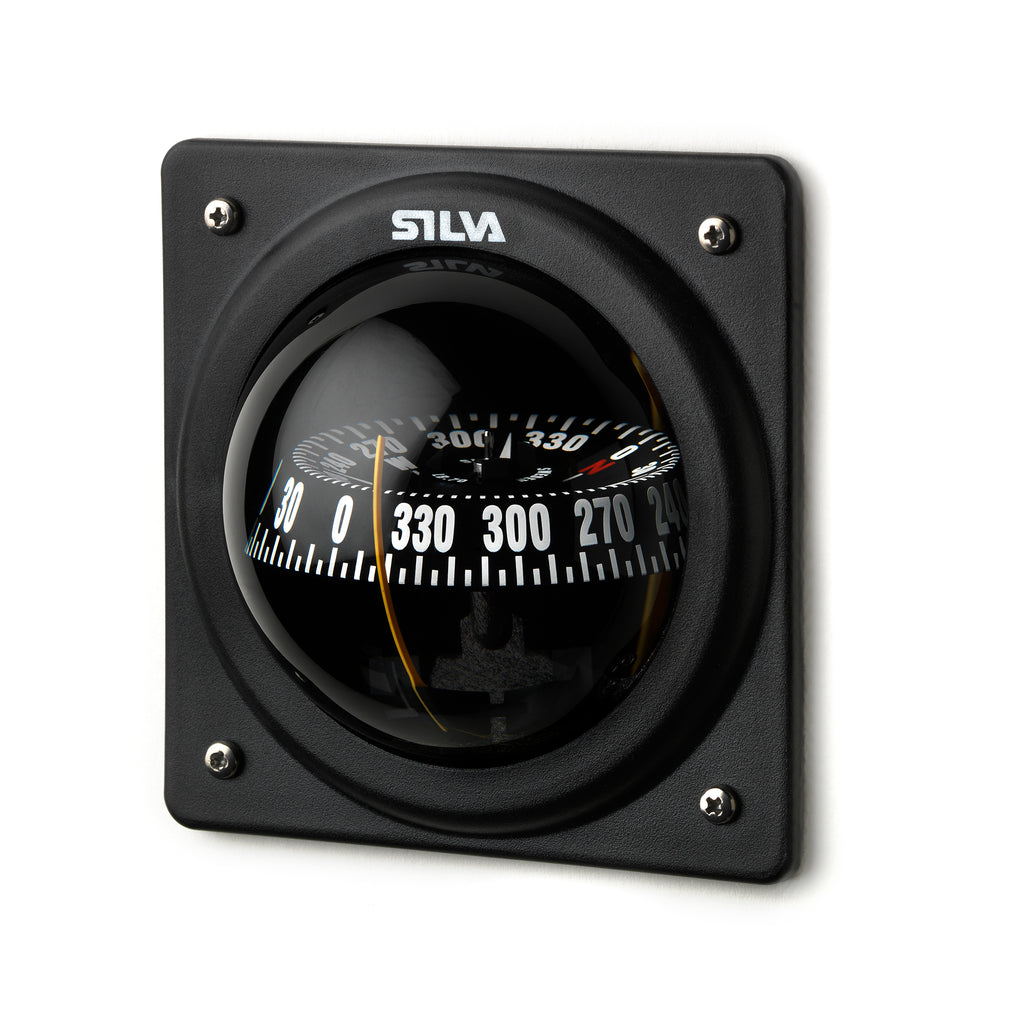

70P is a bulkhead mount compass designed for yachtsmen that demand absolute accuracy and a steady card in all conditions.
The compass handles unlimited slope of the keel line and a 30º heeling angle. The curved lubber line enables swift and clear reading at a glance without parallax errors. With a main steering scale on the horizontal part and direct reading on the vertical edge,
70P is ideal for boats with a sitting as well as a standing helmsman. It can be mounted at most angles and its compact size (70 mm) makes it suitable for smaller boats.
Type of compass: -
Article number: 34990-9011 (MN) 34990-9013 (ME) 34990-9015 (MS)
Accuracy: ± 1° (17.8 mils)
Apparent card diameter: 70mm (2.7 inch)
Built-in compensator: Optional
Card type: Cone
Compatibility: Kayaks, Powerboats, Sailboats
Dimensions: 95x72mm
Gimballed cradle: No
Heeling angle: Roll: 30° Pitch: 30°
Heeling angle scale: No
Illumination: Optional
Lubber lines: Centre
Material: ABS, Acrylic
Memory ring: No
Mounting: Bulkhead
Mounting angle: +10° to +110°
Temperature operating range: -10°C to +70°C
Variant: Magnetic Equator, Magnetic North, Magnetic South
Weight: 344g
Instruction manuals languages: SE, GB, F, DE, DK, FIN, JP, CN, RU, NO, NL, IT, PT, ES
Warranty: 5 years
Country of Origin: China
