Description

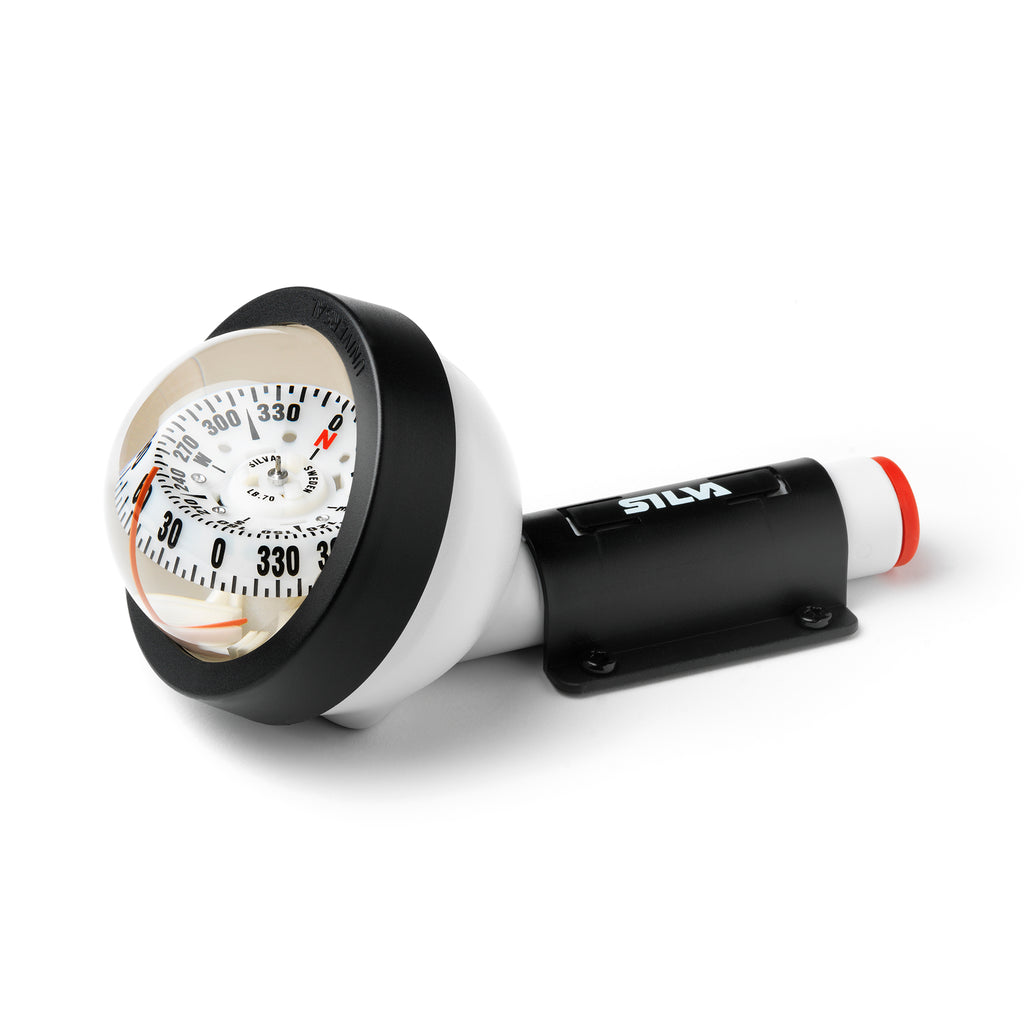

70UNE is a universal compass that can be used in its bracket as a steering compass or as a handheld sighting compass. If dropped in the sea, it floats! Suitable for small boats, kayaks, dinghies, canoes and more.
The compass can be installed in any inclination or position – even upside down. It is easily detached from the bracket to enable temporary sighting use or for security purposes.

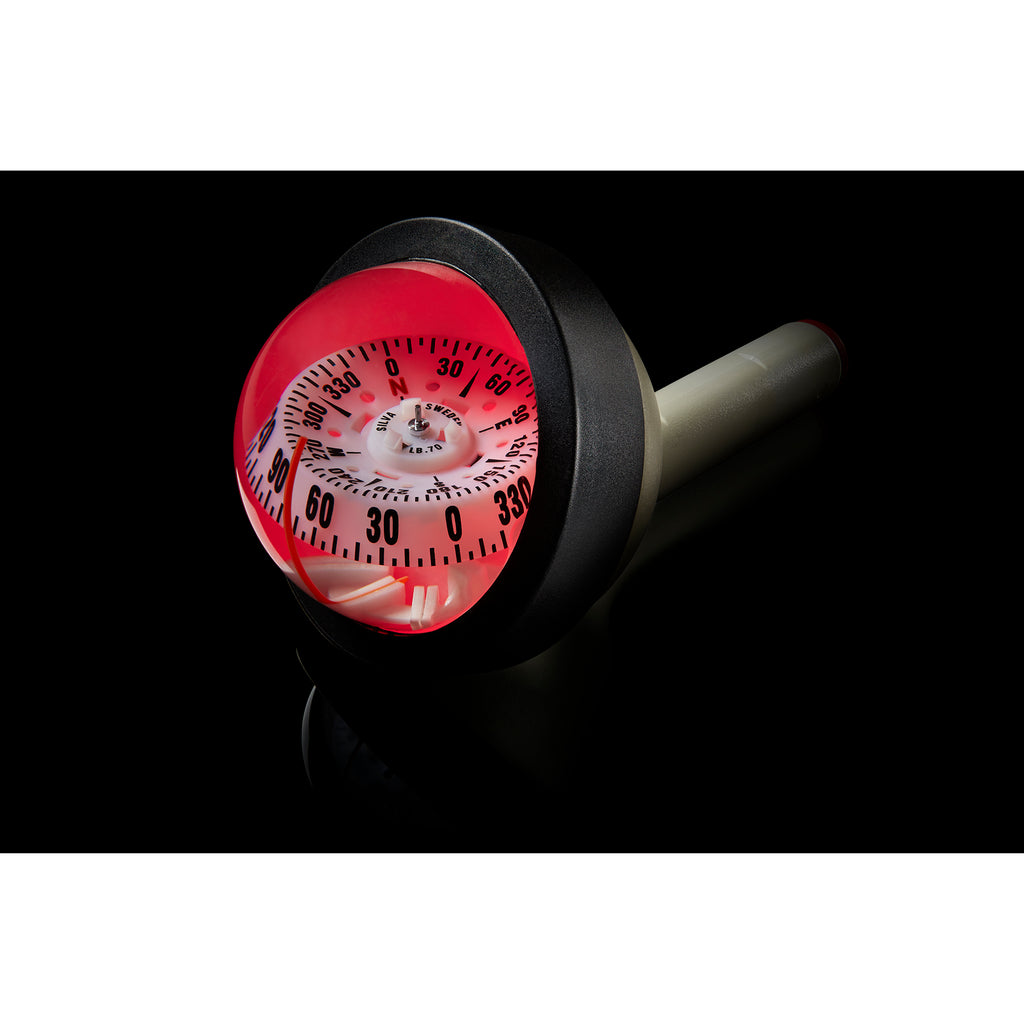

70UNE comes with a waterproof switch and built-in-illumination, powered by two watch batteries, that makes it ideal for night navigation. With a main steering scale on the horizontal part and direct reading on the vertical edge,
This universal compass is ideal for boats with a sitting as well as a standing helmsman. The curved lubber line enables swift and clear reading at a glance without parallax errors.
Type of compass: Universal compass
Illumination: Yes, Colour: red. Burn time: 20h. Batteries: 2x SR44 1.5V (Silver oxide)
Lubber lines: Centre
Gimballed cradle: No
Accuracy: ±1°
Apparent card diameter: 70mm
Compensator: Optional
Card type: Cone
Card graduation: Edge: every 5° Top: every 5°
Heeling angle: Roll: 30° Pitch: 360°
Heeling angle scale: No
Mounting: Bracket / handheld
Mounting angle: Any
Temp operating range: -10°C to +70°C
Material: Acrylic/ABS
Weight: 500g
Dimensions: 86x175mm
Instruction manual languages: SE, GB, F, DE, DK, FIN, JP, CN, RU, NO, NL, IT, PT, ES
Warranty: 5 years
Country of Origin: China
