Description

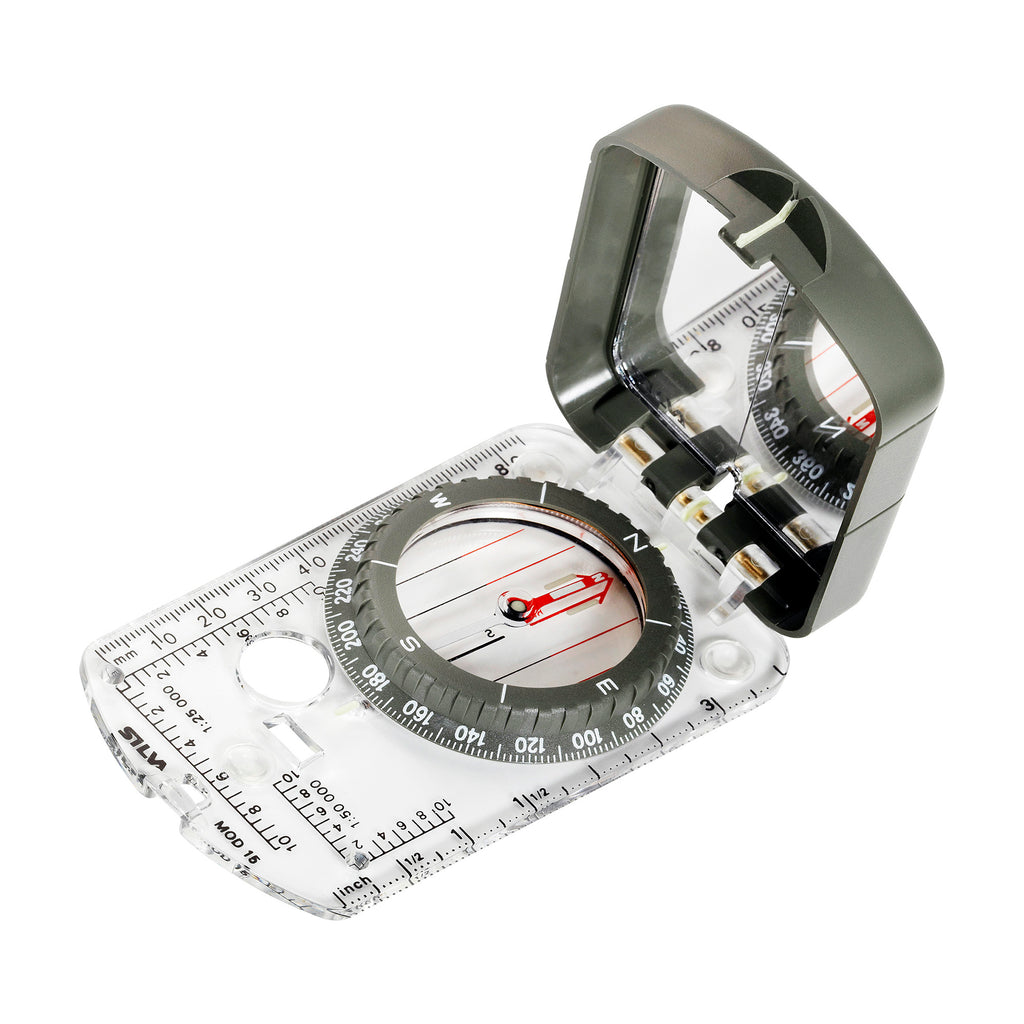

This original mirror sighting compass is used by defence forces all over the world.
It has Romer scales with plotting holes for finding and marking GPS coordinates on the map and rubber feet so it won’t slide on the map. Luminous compound that need to be activated by daylight/flashlight etc.
Will give light up to 4 hours.
360 degrees on the graduation ring and 6400 mils on the reverse side.

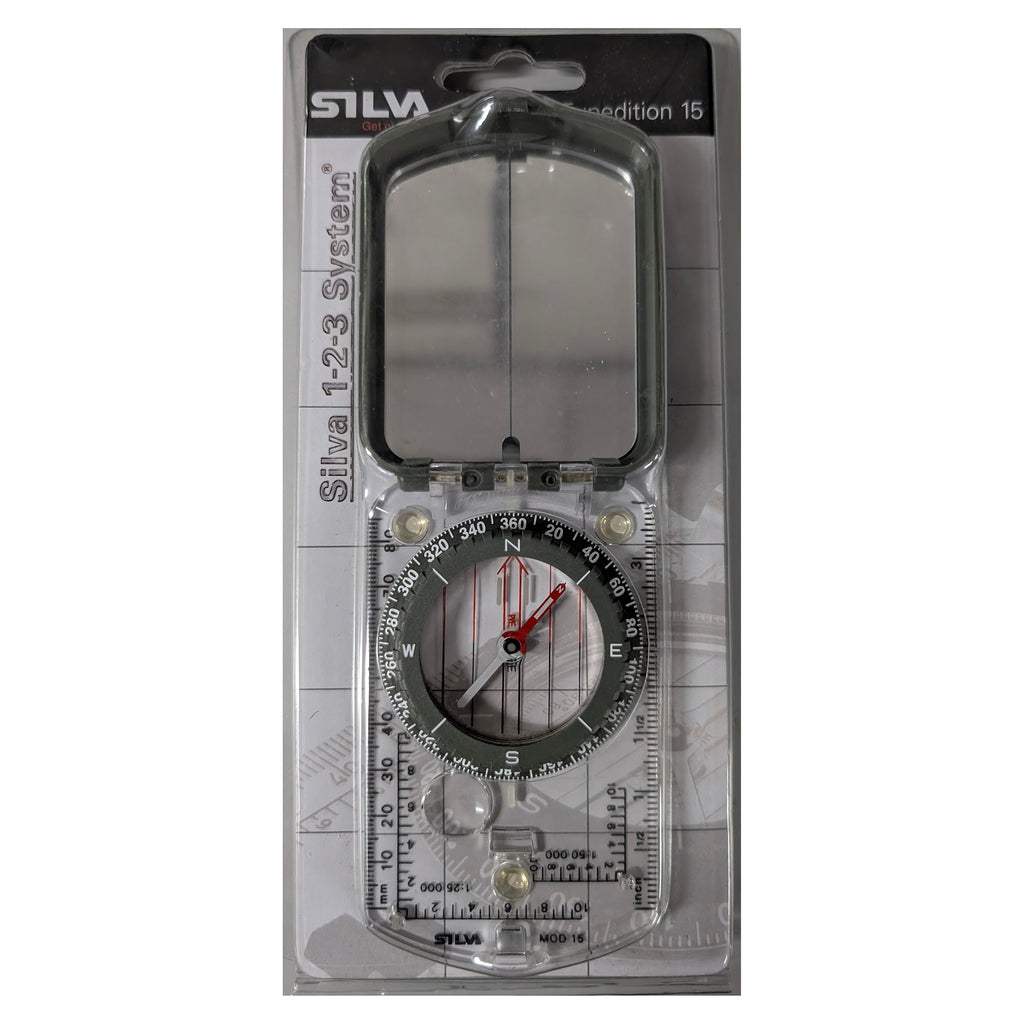

Type of compass: Silva 1-2-3 System Mirror sighting compass
Sighting System: Mirror sighting
Magnifying lens: Yes
Declination adjustment: Yes
Clinometer: No
Illumination / active time after activation in light: Yes, 4 hours after activation in light
Silicon friction feet: Yes
Other: Patented red/black N/S lines in capsule
Specifications:
Resolution degrees / mils: 2 / 50
Measuring scales on base plate: mm, inch
UTM position plotting scales (Romer scales): 1:25k, 1:50k
Settling time from 90 degree angle within +/- 3 deg: 2.7 sec
Settling time from 90 degree angle to complete rest: 5 sec
Accuracy: ± 1° (17.8 mils)
Water resistance: IP68 - (more than 100 m)
Altitude use: 5000m@-15 °C
Impact resistance: 30g in XYZ directions and free fall from 1,5 m height into gravel
Temperature operating range: -40 to +60 °C
Material: Acrylic/Acetal
Size (mm): 108 x 63 x 20
Weight (g): 88
Graduations: 6400° / 360°
